DT/DR-7301     High Speed Data

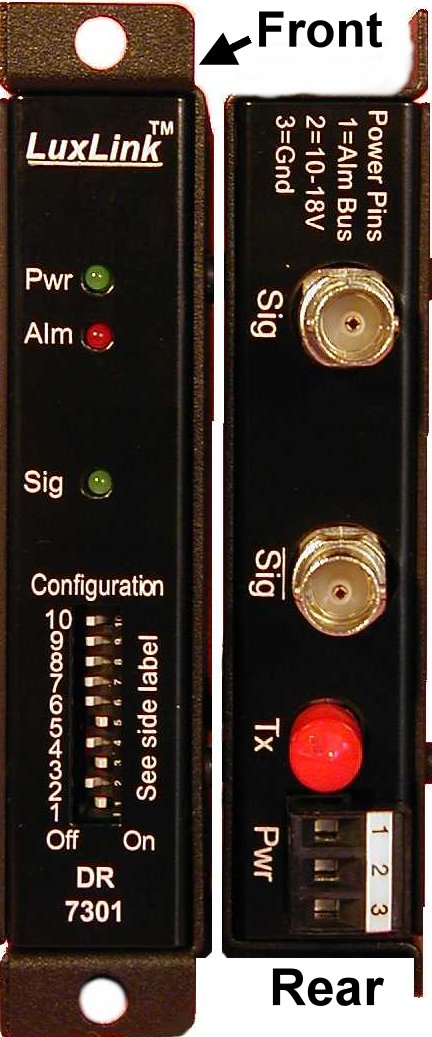

 Transmission		   Click for larger Photo
For Point-to-Point High Speed Data Applications up to 200 Mb/sec

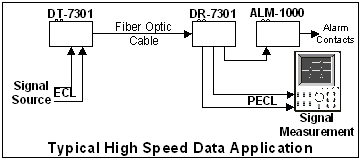

High Speed Digital Data Link Application


The LuxLink™ DT/DR-7301 system consists of the DT-7301 transmitter and DR-7301 receiver. This system is designed to transmit and receive TTL, ECL, or PECL signals in a wide range of diverse applications. The unit can easily be user configured for single-end or differential mode operation. The DT/DR-7301 will operate continuously at all data rates from 1 Mb to 200 Mb/sec  (50Mb TTL). An additional benefit of this system is that it can perform protocol conversion.  For lower data rates models see the DX-7001 and DX-7201

Both multimode and single-mode versions are available and installation is totally adjustment free. In addition, integral indicators are provided to continuously indicate the presence of data signals as well as the presence of operating power making system troubleshooting simple.   View signal interface details application note.


Specifications Important Features
Data Transmission Rate  1 Mb to 200 Mb/s (50Mb TTL)    · 1 Mb to 200 Mb/s Data Rate
Protocols Supported  TTL (50 ohm/Hi-Z), ECL,
  PECL, LVTTL		  · Multi-protocol Conversion
    TTL, ECL, PECL
Duty Cycle*  50/50 to 80/20  · Single-end or Differential
Operating Modes  Single-ended or differential  · Signal & Power Indicators
Rise / Fall time (ECL)  0.5ns typical, 2.5ns max  · Multimode & Single
Min pulse width (ECL)  5.0 ns     mode Versions available
Jitter  3.0 ns maximum  · Single model for stand
     alone or rack mount
System delay  35 ns typical w/1 meter fiber  · Din Rail mount option
Bit Error Rate 1 x 10-9 (worse case)
Operating Wavelength 1310 or 1550nm
Optical Output Power  -14 dBm (multimode),
 -10 dBm (single-mode)
Optical Loss Budget  0-15 dB (multimode),
 0-18 dB (single-mode)
Signal Connectors  Two BNCs
Operating Temperature -35 to +75 degrees C
Operating Humidity  0 to 95% non-condensing
Power Requirements  11-24 VAC/DC @210mA
Physical Size  5.0” x 3.0 x 1.0"
127mm x 76mm x 25.4mm

*The DT/DR-7301 is not recommended for single-pulse Applications
Note all specifications are subject to change without notice
