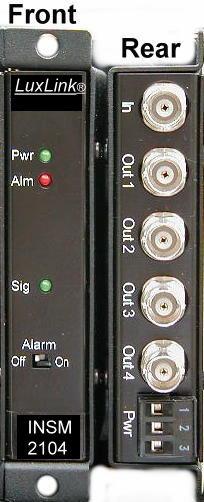

INSM-2104 10 MHz Sine-wave Distribution Amplifier    10 MH  DA (Distribution Amplifier), click for larger image

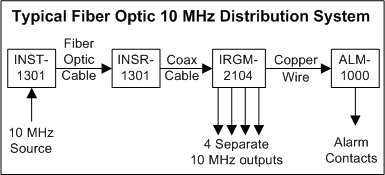

For 10 MHz Sine Wave Distribution Applications




The LuxLink® INSM-2104 is a distribution amplifier used to distribute precision 10 MHz sine-wave timing signals. The unit utilizes analog circuitry and an internal low pass filter to transmit 10 MHz analog signals to four separate isolated outputs.

The INSM-2104 has no operating controls and installation only requires the connecting of the appropriate cables. In addition, integral LEDs are provided to continuously indicate the presence of input signals as well as the presence of 10 MHz signals as well as the presence of operating power making system troubleshooting simple.


Specifications Important Features
System Bandwidth/channel  10 MHz    · 10 MHz  Analog Bandwidth
Input / Output Impedance  50 ohms  · Standard Single-mode Fiber
   Compatibility
Input / Output Level  1 Volt rms (3V pp) max  · Signal & Power Indicators
Harmonic Levels*  -50dBc typically  · Stand-alone, DIN or Rack
    Mountable
Output Channel Isolation  > 40 dB · Integral 10 MHz Low Pass Filter
Propagation Delay 5 nanoseconds
Skew between outputs  0.5 nsec typical

Number of output channels  4

Signal Connector  BNC
MTBF (MIL-HDBK-217)  >100,000 Hours
Operating Temperature  -35º to +75º C
Power Requirements  11-24 VAC/DC @350 mA
Physical Size (mm)  5.0” x 3.0 x 1.0"
127mm x 76mm x 25.4mm


Note all specifications are subject to change without notice

*The INSM-2104 will only degrade the harmonic levels of an input signal by less than 5dB.  For example, an input signal

 with a third harmonic level of -60dBc will result in an output signal with a level of less than -55dBc.
