INSM-2304 Distribution Amplifier   Wide Band Distribution Amplifier, click for larger image
For Distribution of Analog Signals

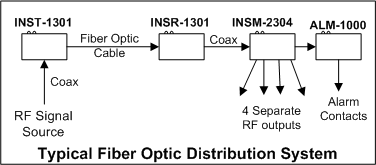

   Typical RF distribution amplifier application


The INSM-2304 is a distribution amplifier (DA) that accepts an electrical analog input signal and produces four individual electrical output signals for distribution over four separate coaxial cables to other analog receivers.


Integral indicators are also provided to continuously indicate the presence of input signals as well as the presence of operating power making system troubleshooting simple. Units can be mounted in our 1U, 2U, or 3U rack panels, and may be daisy chained providing multiple outputs  (e.g. 3 units, in a 1U rack yields 10 outputs)



Specifications Important Features
System Bandwidth (per channel)  DC  to 100 MHz     DC to 100 MHz Bandwidth
Input / Output Impedance  50 ohms   Signal & Power Indicators
Input / Output Levels  1 Volt peak to peak   Fully Adjustment Free
Signal / Noise Ratio  60 dB minimum   Stand-alone, DIN or Rack
    Mountable (same unit)
Linearity & THD  0.1% typical
Output channel isolation  > 40 dB
Offset between channels  <6 nanoseconds
Propagation Delay  5 nanoseconds

Differential Gain 0.01%
Differential Phase 0.02 degrees
Voltage Noise 14nV/root Hz
Current Noise 1.5pA/root Hz
Second/Third Harmonic <-40dBc/Hz @10MHz
Output channels  4

Signal Connectors  BNC
Indicators Pwr, Signal, Alm
Humidity 0 to 95% non-condensing
MTBF (MIL-HBK-217D)  >120,000 Hours
Operating Temperature  -35 to +75 C
Power Requirements  11-24 VAC/DC @350 mA
Physical Size (mm)  5.0 x 3.0 x 1.0"
(127mm x 76mm x 25.4mm)


Note all specifications are subject to change without notice
