INST/INSR-1701     Ultra-Wideband
Analog Transmission

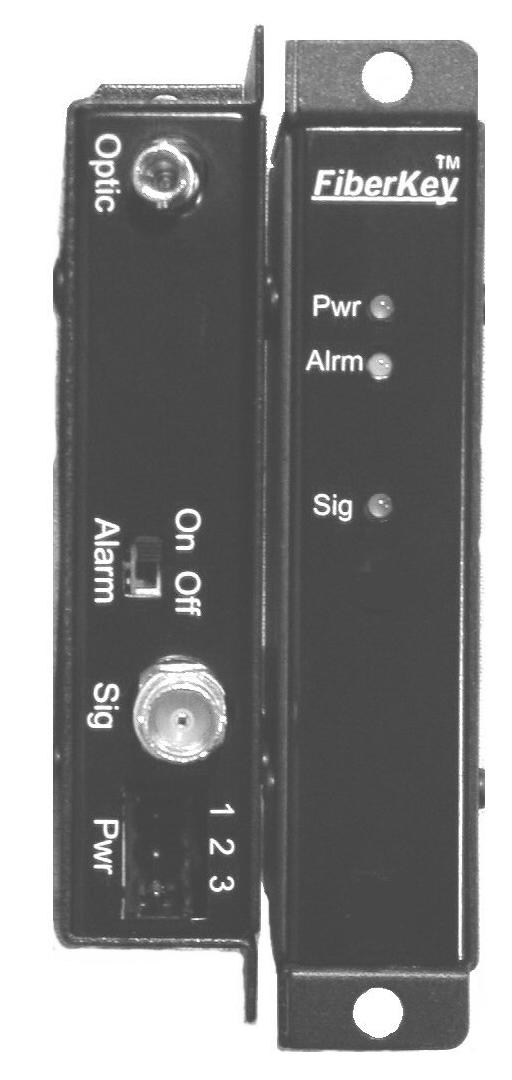

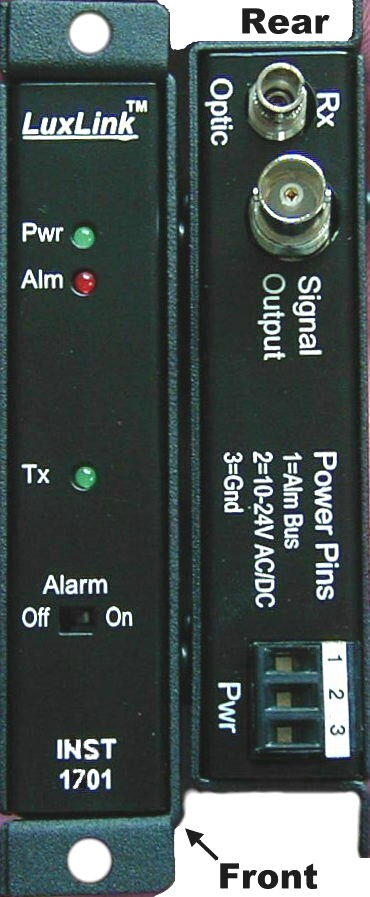

    Click for a larger image
For Cost-effective Wideband  Analog Applications

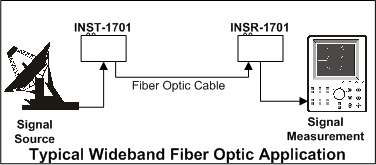

 Typical Analog Wideband Applicaion


The LuxLink INST/INSR-1701 system consists of the INST-1701 transmitter and INSR-1701 receiver. This link will transmit ultra-wideband analog signals up to 1.5 GHz

Both multimode and single-mode 1310nm & 1550nm versions are available and installation is adjustment free. Integral indicators are provided on both units to continuously indicate the presence of repetitive signals as well as the presence of operating power making system troubleshooting simple.

For 1V pp input input level utilize specify the INST-1721 model.


Specifications Important Features
System Bandwidth Single-
 mode
 300KHz -1.5GHz (+0,-3dB)     1.5 GHz Analog Bandwidth
System Bandwidth Multimode 300Khz-500MHz/Km   Signal/ Power Indicators
Input/Output Impedance  50 ohms   Stand-alone, DIN or Rack
    Mountable (same unit)
Input Level  0.1 volt pp maximum   Standard Single-mode Fiber Compatibility
Output Level  1.0 volt pp maximum
Optical Noise Level (typical)  -23 dBm (5uW) rms
Linearity  3.0% maximum
Phase Shift  3.0% maximum
Rise / Fall time  0.5 ns minimum
Signal/Noise Ratio  48 dB min @ 0 dB optical loss
 28 dB min @ 10 dB optical loss
Dynamic Range 20 dB usable
Operating Wavelength  1310 nm or 1550 nm
Optical Loss Budget  0 to10 dB
Optical Connectors  ST/PC  multimode
 FCPC single-mode
Signal Connectors  BNC
Humidity <95% non-condensing
Power Requirements  11-24 VAC/DC @350mA max
Operating Temperature -35 to +75 C
Physical Size (mm)  5.0 x 3.0 x 1.0"
(127mm x 76mm x 25.4mm)


Note all specifications are subject to change without notice
