| INST/R-2001
|
Analog Transmission |
|
 |
| For 0-10 Volt or 0-20mA Analog
Instrumentation Applications |
|
|
|
|

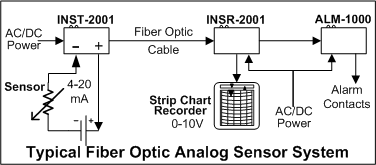

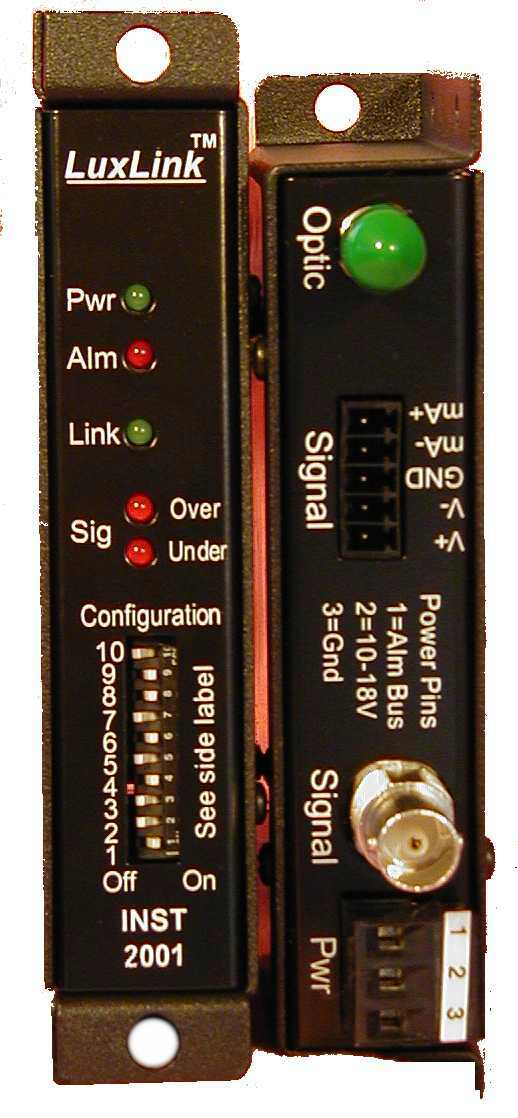

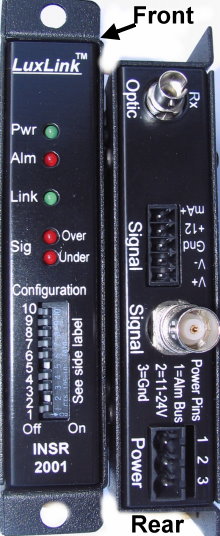

The LuxLink™ INST/INSR-2001 system consists of the INST-2001
transmitter and INSR-2001 receiver. This system transmits the most common
industrial sensor signals (0 to +10 Volts or 0-20mA) from
point-to-point using interference-free fiber optic transmission technology. Design
for solid performance at a low cost.
If you need increased accuracy, bandwidth or input range, see the INST/INSR-3001,
For digital current loop communication, see the
DX-7501.
Both multimode and single-mode versions are available. Integral
indicators
are provided on both units to continuously indicate an established link,
power, under and over range conditions, making system troubleshooting
simple.
See application note for current loop
interfacing. |
| |
| Specifications |
|
|
Important Features |
| System Bandwidth (min) |
DC to 100 Hz |
|
· Low Cost
$355 / end* |
| System Response Time |
10 ms |
|
· 10 ms Response
Time |
| Protocols accepted |
0 to +10V, 0 to
+1 V, or
0 to +20mA |
|
· Link,
Over-range, &
Power Indicators |
| Resolution |
24 mV (on 1V scale) |
|
· Multimode &
Single mode |
| Link Accuracy |
2.4% |
|
Versions available |
| Impedance |
10K ohms (voltage mode)
50 ohms (current mode) |
|
|
| Optical Output Power |
-16 dBm (multimode),
-16 dBm (single-mode) |
|
|
| Optical Loss Budget |
0-12 dB (multimode),
0-12 dB (single-mode) |
|
|
| Signal Connectors |
Terminal Block (V or mA)
BNC (V) |
|
|
| Power Requirements |
11-24 VAC/DC @150ma |
|
|
| Operating Temperature |
-35 to +75 degrees C |
|
|
| Physical Size |
5.0” x 3.0 x 1.0"
127mm x 76mm x 25.4mm |
|
|
Note all specifications are subject to change without notice.
* For -1 models, 850nm Multi-mode. 1310nm and single models are higher
cost.
Copyright 2008
|
Fiber Optic Communications Systems
