| INST/R-3001
|
Universal Analog
Sensor Transmission |
|
|
| For Remote Sensor Signal
Transmission Applications |
|
|
|
|

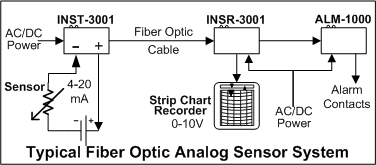

The LuxLink™ INST/INSR-3001 system consists of the INST-3001
transmitter and INSR-3001 receiver. Both units transmit most common
industrial sensor signals from point-to-point using interference-free fiber
optic transmission technology. The system is user configurable (via DIP
switch settings) and fully compatible with 0/20 or 4/20mA. analog or digital
current loops as well as 0 to 1, 3 or 10 Volts analog DC voltage signals
The link may
also be used to convert from one protocol to another. Typical
applications are remote sensors and motion control. For less
demanding performance at lower cost see the
INST/INSR-2001. For digital current loop communication, see the
DX-7501.
Integral indicators are provided on both units to continuously indicate an
established link, power, under and over range conditions, making system
troubleshooting simple.See application note for
current loop interfacing and
protocol conversion |
| |
| Specifications |
|
|
Important Features |
| System Bandwidth (min) |
DC to 80 KHz(3dB),100KHz(6dB) |
|
· 5 us Response
Time |
| System Response Time |
5 us typical |
|
· 80 KHz
Signal Bandwidth |
Voltage Modes
(output loads minimum) |
± 1V (50Ω
), ±3V (300Ω ) or
±10V (1KΩ ) |
|
· Multimode &
Single mode
Versions available |
| Input Impedance |
10K Ω (voltage mode), 50 Ω
(current mode) |
|
· Multi-protocol
Conversion |
| Current Modes |
0 to 20mA or 4 to 20mA |
|
· Link,
Over-range, & |
| Link Accuracy |
< 0.25% full scale |
|
Power
Indicators |
| Link Linearity |
< 0.25% full scale |
|
· Single model for stand
alone or
rack mount |
| Signal / Noise Ratio |
60 dB minimum |
|
·
Din Rail mount
option |
| Resolution |
< 5 mV (on 1 volt scale) |
|
|
| Drift |
100 ppm/ºC full scale |
|
|
| Rise time |
5 us typical |
|
|
| Output Load Capacitance |
10nF maximum |
|
|
Operating Wavelengths
available |
850, 1310, or 1550nm |
|
|
| Optical Output Power |
-16 dBm (multimode),
-16 dBm (single-mode) |
|
|
| Optical Loss Budget |
0-13 dB (multimode),
0-13 dB (single-mode) |
|
|
| Signal Connectors |
Removable terminal block
for V or mA, & BNC for V only |
|
|
| Power Requirements |
11-24 VAC/DC @350mA |
|
|
| Operating Temperature |
-35 to +75 degrees C |
|
|
| Physical Size |
5.0” x 3.0 x 1.0"
127mm x 76mm x 25.4mm |
|
|
*Note all specifications are subject to change without notice
