IRGC-1004 IRIG B to 1 PPS Format
Converter
   Click or larger image of the IRGC-3003 IRIG Converter
For IRIG DCLS <----> Modulated Format Conversion

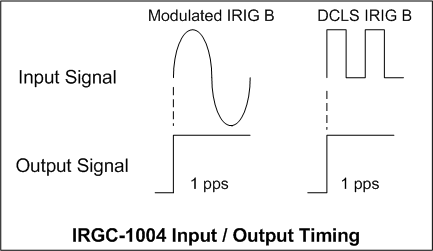

The LuxLink® IRGC-1004 converts a modulated IRIG B analog input signal or an un-modulated IRIG B DCLS signal into a 1 pulse per second DCLS output. The output signal is synchronized with the rise time of the input signal and is ideal when a 1 pps signal is required.

Integral indicators are provided to continuously indicate the presence of IRIG signal as well as the presence of operating power making system troubleshooting simple. Optional ALM-1000 can be utilized if alarm outputs are required.  Units can be mounted in our 1U, 2U, or 3U rack panels.

For other IRIG distribution products see the IRGM-1004, 2004, 7004, 8004



Specifications Important Features
Input Formats  Modulated or DCLS    · 4 Buffered Outputs
Modulated Input Impedance  600 ohms  · Signal & Power Indicators
Modulated Signal Input 1 KHz per IRIG B  · Stand-alone, DIN or Rack
    Mountable (same unit)
Analog Input Signal Level 1 volt to 3 volts pp
Input / Output Delay Less than 1 microsecond
DCLS  Signal Input 100 pps (TTL)
Output Signal Level Standard (TTL)
Output Rise Time 10 Nanosecond maximum
Signal Connectors  BNC
Propagation Delay  < 1 microsecond
Offset between outputs  < 0.5 ns
MTBF (MIL-HDBK-217D)  >100,000 Hours
Operating Temperature  -35º to +75º C
Humidity <95% non-condensing
Power Requirements  11-24 VAC/DC @150 mA
Physical Size (mm)  5.0” x 3.0 x 1.0"
127mm x 76mm x 25.4mm


Note all specifications are subject to change without notice
