IRGP-1501
IRGM-1504 |
IRIG Analog
Distribution |
|
|
| For High Quality IRIG Signal
Distribution |
|
|
 |
|

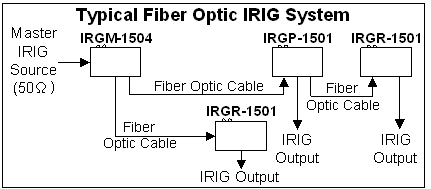

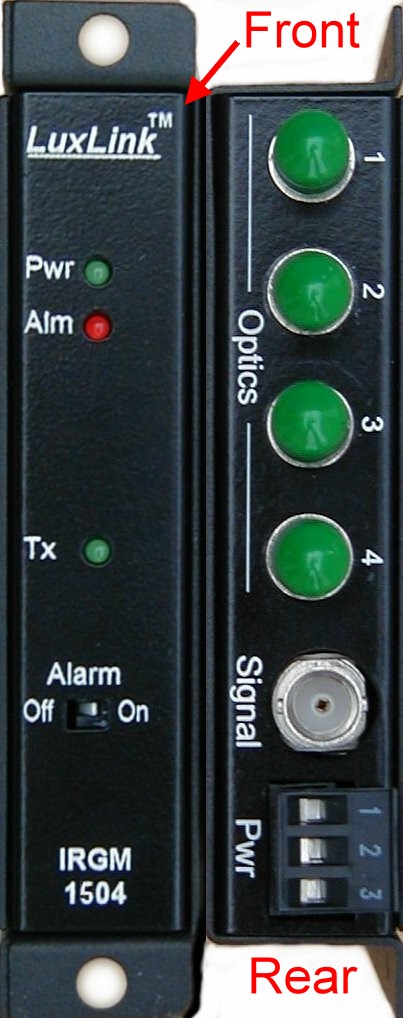

The LuxLink™ IRGM-1504 consists of an optical transmitter that
converts an electrical IRIG A through H input signal into four individual
optical output signals for distribution over separate fiber optic cables to
IRGR-1501 receivers. Multiple IRGM-1504 units may be “daisy-chained” when
more than 4 output channels are required. The IRGP-1501 is an optical
repeater that is used to implement a drop-and-repeat linear IRIG A through E
distribution networks. NASA-36 and IEEE-1344 are also supported. (For
standard IRIG, 1Vpp or 600 Ohm 3Vpp systems see the
IRGM/P-1004)
Both units are compatible with IRGT-1501 and IRGR-1501 transmitters and
receivers. Integral indicators are also provided on both units to continuously
indicate the presence of IRIG signals as well as the presence of operating
power making system troubleshooting simple.
|
| |
| Specifications |
|
|
Important Features |
| System Bandwidth (min) |
100 Hz to 0.5 MHz (+0,-3dB) |
|
· 12 dB Loss
Budget |
| Protocols |
IRIG A,B,D,E,H, NASA36 |
|
· Cost effective |
| Input / Output Impedance |
50 ohms |
|
· Signal & Power
Indicators |
| Input / Output Level |
3 volt pp, (5 mA ) |
|
· Multimode &
Single mode |
| Signal/Noise Ratio |
60 dB minimum |
|
Versions
available |
| Linearity |
2.0% typical |
|
· Single model for stand
alone or
rack mount |
| Optical Output Power |
-16 dBm (multimode),
-16 dBm (single-mode) |
|
·
Din Rail mount
option |
| Optical Loss Budget |
0-12 dB (multimode),
0-12 dB (single-mode) |
|
|
| Signal Connectors |
BNC |
|
|
| MTBF (Mil-HDBK-217D) |
100,000 Hours |
|
|
| Operating Temperature |
-35º to +75º
C |
|
|
| Power Requirements |
11-24 VAC/DC @350mA |
|
|
| Operating Temperature |
-35 to +75 degrees C |
|
|
| Physical Size (IRGP) |
5.0” x 3.0 x 1.0"
127mm x 76mm x 25.4mm |
|
|
| Physical Size( IRGM) |
5.0” x 7.0 x 1.0"
127mm x 178mm x 25.4mm |
|
|
|
|
|
|
*Note all specifications are subject to change without notice
