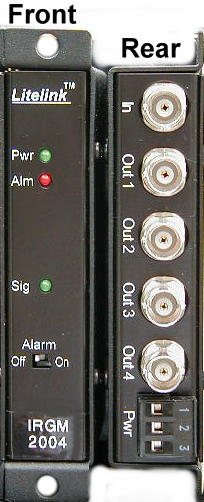

| IRGM-2004 |
IRIG Analog
Distribution Amplifier |
|
|
| For High Quality IRIG Signal
Distribution |
|
|
|
|
The IRGM-2004 is a distribution amplifier (DA) that accepts an electrical
modulated IRIG A
through H input signal and produces four individual electrical output
signals for distribution over four separate coaxial cables to other IRIG

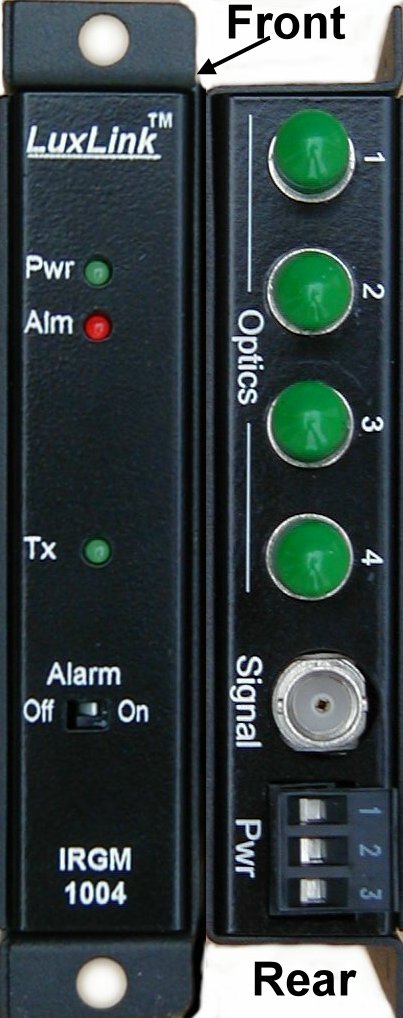

receivers. NASA-36 and IEEE 1344 are also supported. For optical
IRIG distribution amplifier see the IRGM-1004.
If you need a DCLS (Direct Current Level Shift) or
digital distribution amplifier see the IRGM-8004.
Integral indicators are also provided to continuously
indicate the presence of IRIG signals as well as the presence of operating
power making system troubleshooting simple. Units can be mounted in our 1U,
2U, or 3U rack panels, and may be daisy chained providing multiple outputs
( e.g. 3 units in a 1U rack yields 10 outputs)
|
|
| Specifications |
|
|
Important Features |
| System Bandwidth (min) |
100Hz to 500Hz (+0,-3dB) |
|
· 4 Buffered
Outputs |
| Protocols |
IRIG A,B,D,E,H, NASA36 |
|
· Cost effective |
| Input / Output Impedance |
600 ohms |
|
· Signal & Power
Indicators |
| Input / Output Level |
3 volt pp |
|
· Rack or
wall mountable |
| Output Drive Current |
5 mA per output |
|
|
| Signal/Noise Ratio |
60 dB minimum |
|
|
| Linearity |
2.0% typical |
|
|
| Number of Outputs |
4 channels |
|
|
| Signal Connectors |
BNC |
|
|
| Propagation Delay |
5 ns |
|
|
| Offset between outputs |
< 0.5 ns |
|
|
| MTBF (Mil-HDBK-217D) |
100,000 Hours |
|
|
| Operating Temperature |
-35º to +75º
C |
|
|
| Power Requirements |
11-24 VAC/DC @350mA |
|
|
| Operating Temperature |
-35 to +75 degrees C |
|
|
| Physical Size |
5.0” x 3.0 x 1.0"
127mm x 76mm x 25.4mm |
|
|
|
|
|
|
*Note all specifications are subject to change without notice
