OE-1001     Optical/ Electrical
Converter

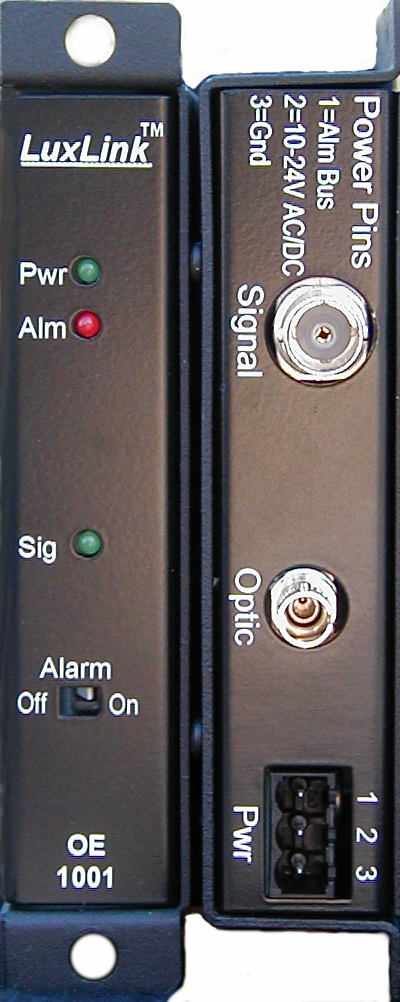

   Click for Larger image of Optical to Electrical Converter
For analyzing medium to high speed optical signals

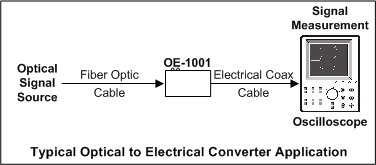

 Typical Optical to Electrical Converter Application


The LuxLink OE-1001 is an amplified analog optical to electrical converter that is utilized to view optical signals present in a fiber optic cable. It is useful for research and development applications as well as routine troubleshooting. Two wavelength rages are available. Integral indicators are provided to monitor repetitive signals as well as the presence of operating power making system troubleshooting simple.

Specifications Important Features
Bandwidth (-3dB)  50 KHz to 1.5GHz     1.5 GHz Signal Bandwidth
Output Impedance  50 ohms   40 dB Power Gain
Electrical Output Level  1 volt pp at max optical input   Signal/ Power Indicators
Electrical Signal Connector  BNC   Cost Effective
Dynamic Range  20 dB usable   Stand-alone, DIN or Rack
     Mountable (same unit)

Rise time  < 1 nsec for -3, -7 models
 < 2 nsec for -1 model

Optical Input Power Max

 0 dBm (1000uW) @850nm
 -3 dBm (500uW) @1310/1550nm

Optical Noise Level (typical)

 -20 dBm (10uW) 850nm
 -23 dBm (5uW)1310 / 1550nm

Operating Wavelength 660, 850, 1310 or 1550nm
Indicators Power, Signal
Operating Connectors ST for -1 & -3 models
FCPC for -7 models
Power Requirements  11-24 VAC/DC @250 mA
MTBF (per MIL HBK 217D) >120,000 hours
Humidity <95% non-condensing
Operating Temperature -35 to +75 C
Physical Size  5.0 x 3.0 x 1.0"
127mm x 76mm x 25.4mm


Models OE-1001-3 & -7
Wavelength  Sensitivity
 1550  >100 mV/W minimum
 1310 > 80 mV/W minimum
 850 > 10 mV/W minimum

Model OE-1001-1
Wavelength  Sensitivity
 850 > 40 mV/W minimum
 660 > 20 mV/W minimum

Note all specifications are subject to change without notice.                              Copyright 2017
