RMP-1000, 2000, 3000     Rack Mounting Panels

All our standard equipment can be mounted in a stander 19" Rack.  The RMP-1000, 2000, 3000 are a cost-effective rack mountable panels that will allow most LuxLink fiber optic transmitters, receivers or transceivers to be mounted to a standard EIA 19 rack frame. The panels are available in 1U, 2U and 3U configurations and may be used with either external or integral mounted companion power supplies.

The simple nature of the rack mounting panels allows maximum space in the rear of a rack enclosure for other equipment while still providing a rugged mounting for the fiber optic equipment. When fully populated, an RMP has the same front panel appearance as a common card-cage but at a significantly lower overall cost.


Model No.

Rack Size

Total Slots

Slots with Power Supply

Physical size (mm)

Typical Supply

Cost*

RMP-1000

1U

3

2

1.75" (44.5) x 19" (483)

PS-1210

$55
RMP-2000

2U

6

4

3.50" (88.9) x 19" (483)

PS-1210 or PS-1260

$75
RMP-3000

3U

14

12

5.25" (133.4) x 19" (483)

PS-1260

$90

*All prices $US, domestic, Rack Only (power supply not included) and subject to change

1U, 2U, & 3U Panel Configurations

Examples of RMP-1000 and RMP-3000 with equipment.

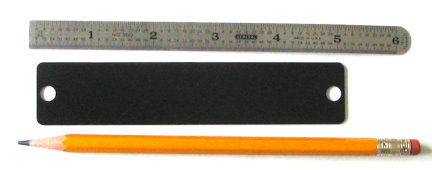

 Photo of Blank Filler Plate

Overall Finish, Black Powder Coated Anodized aluminum




Blank filler plates are available. Order RMPB-1001
 Photo of Blank Filler Plate


For fiber adapter plates see RMPA-1004.
 Fiber Optic Adapter Panel

Note that all specifications are subject to change without prior notice.
