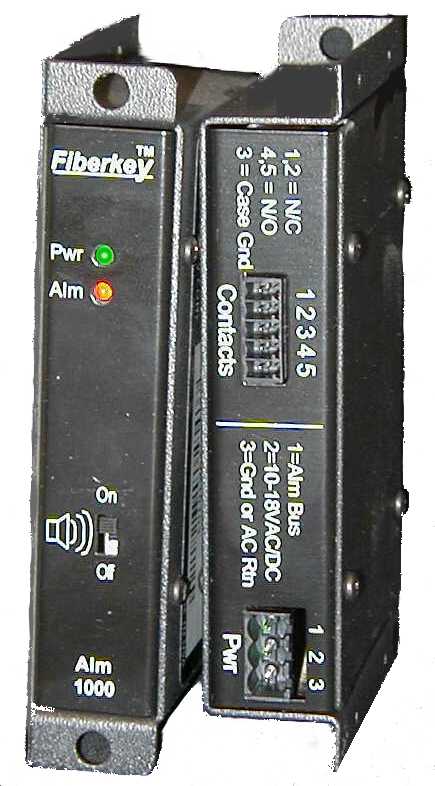

ALM-1000 Alarm Sensing Module   Click for larger photo of ALM-1000 Photo
For Visual, Audible and Remote Indications of Alarm Conditions

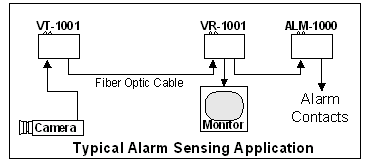

Fiber Optic Alarm Module Application


The Luxlink© ALM-1000 provides an indication of an alarm condition that occurs in any Luxlink© fiber optic transmission module to which it is connected. When an alarm condition is sensed, a red indicator LED on the unit begins to blink and an audible beeper begins to sound. In addition, a set of SPDT contacts are activated for the operation of a remote device.

The ALM-1000 may be used to detect the loss of a signal, or to detect the occurrence of a broken fiber depending on the module it is connected to. The unit may be used in either a stand-alone mode or mounted to any of the RMP series of rack mounting panels.

Specifications Important Features
Compatibility Any Luxlink© module     · Visual and Audible  Indications
Visual Indicator Blinking Red LED   · Remote SPDT  Alarm Contacts
Audible Indicator Beeping Piezo Sounder   · Stand-alone, DIN or Rack Mountable
     (same unit)
Controls* Sounder On / Off
Remote Alarm Contacts SPDT
Contact Ratings  0.5 A @ 125 VAC
 1.0 A @ 24 VDC
Remote Contact Connector Removable Terminal Block

MTBF (per MIL HBK 217)

>120,000 hours

Operating Temperature  -35 to +75 °C
Humidity  <95% non condensing
Power Requirements  11-24 VAC/DC @100mA
Physical Size (mm)  5.0" x 3.0" x 1.0"
127mm x 76mm x 25.4mm

* Red Alarm LED and Remote Alarm Contacts cannot be turned off.
Note that all specifications are subject to change without prior notice.
