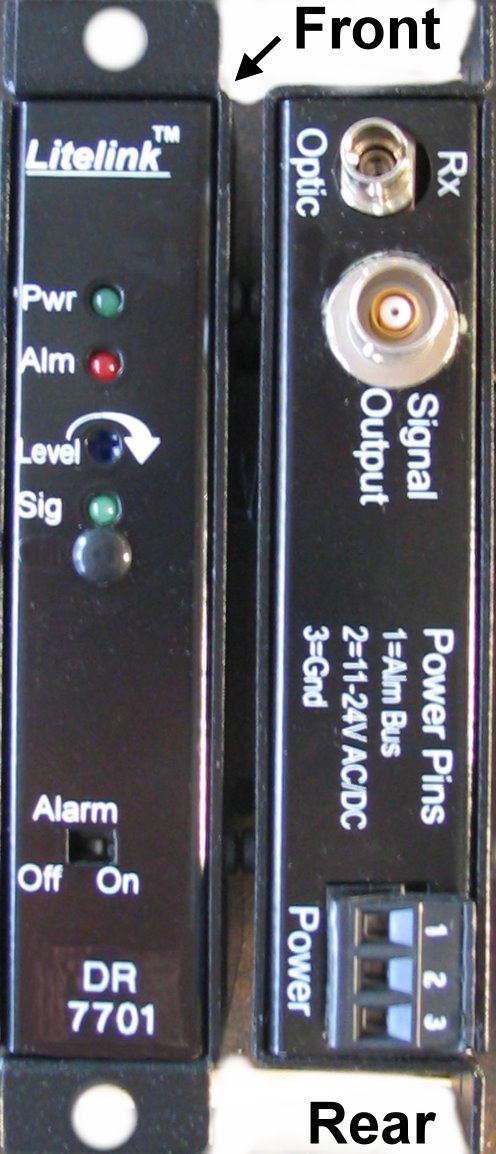

DT/DR-7701     MIL-1553  Bus Monitoring System     Click for larger image of the MIL-1553 singnal Monitor
MIL-1553  Transmission System Data

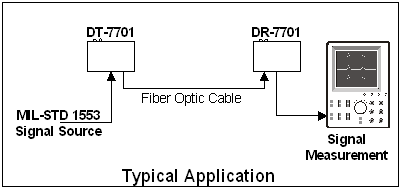

Block diagram of the MIL-1553 singnal Monitor Application


The Luxlink® DT/DR-7701 system consists of the DT-7701 transmitter and DR-7701 receiver. Both units utilize intensity modulation (IM) to transmit MIL-1553 signals for bus monitoring and diagnostic purposes. All voltages present on the bus from 0 to 5 volts are linearly transmitted allowing noise, hum and other undesirable analog and digital signals to be observed. Voltages from 5 to 20 volts are compressed but still transmitted for monitoring purposes.

Both multimode and single-mode versions are available.  Integral indicators are provided on both units to continuously indicate the presence of repetitive signals as well as the presence of operating power making system troubleshooting simple.


Specifications Important Features
System Bandwidth (min)  20 Hz to 10 MHz    · 10 MHz Signal Bandwidth
Input/Output Impedance  3000 ohms/50 ohms  · Linear Pure Analog
   Transmission
Input/Output Coupling Method Transformer  · Signal & Power Indicators
Input/ Output Signal
 Level*		  0 to 20 Volts pp  · Multimode & Single mode
    versions
Linear Range* 0 to 5 Volts pp  · Stand-alone, DIN or Rack
    Mountable (same unit)
Signal/Noise Ratio  60 dB minimum  ·Transformer Coupled Input and
    Output
Linearity  3.0% maximum
Phase Shift  3.0° maximum
System Delay  25ns + 1ns/foot of fiber
Optical Loss Budget  0-10 dB
Signal Connectors  BJ-77
Optical Connectors ST (multimode)
Power Requirements  12-24 Volts DC @500  mA
Operating Temperature -35 to +75 degrees C
Physical Size (mm)  5.0" x 3.0" x 1.0"
(127mm x 76mm x 25.4mm)

Note all specifications are subject to change without notice.

*Voltage from 0 to 5 volts are transmitted linearly.  Voltages from 5 to 20 volts are compressed but still transmitted for monitoring purposes.
