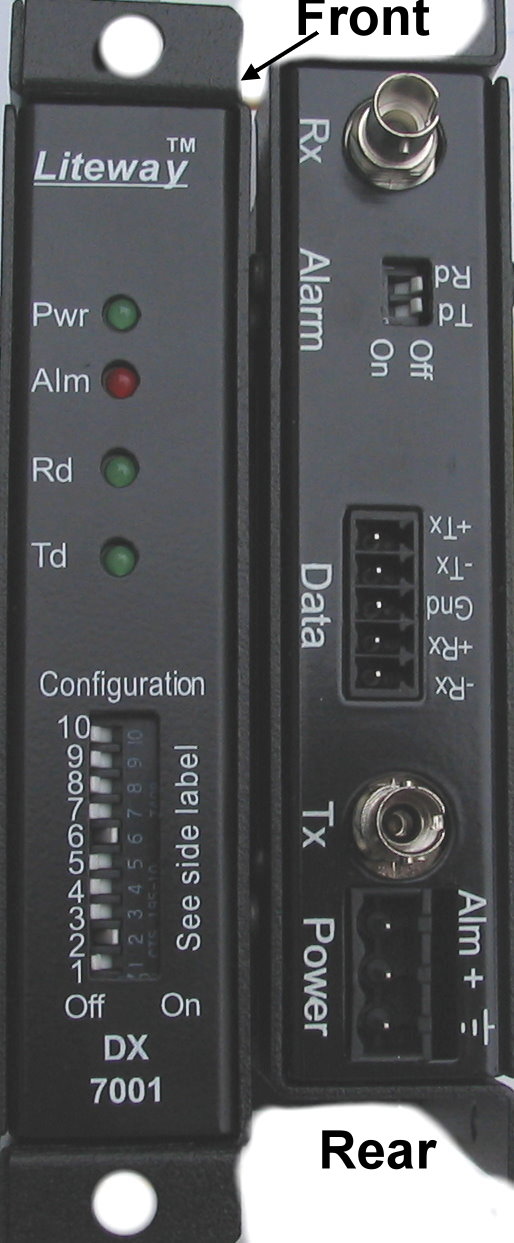

DX-7001     Universal Data     Click for larger image of DX-7001

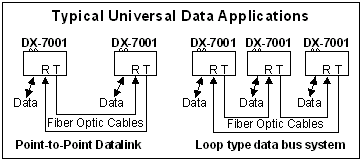

Point-to-Point or Drop-and-Repeat  Applications

Typical data transmission application


The Luxlink© DX-7001 is a data transceiver designed to transmit and receive RS-232, RS-422, RS-485 (2 wire or 4 wire) or TTL signals in a wide range of diverse applications. The unit is designed to operate in simplex, full duplex or drop-and-repeat modes and can easily be user configured for a single protocol or for mixed protocol operation. The DX-7001 will operate continuously at all data rates from DC to 10 Mb/sec.


Both multimode and single-mode versions are available and installation is totally adjustment free. In addition, integral indicators are provided to continuously indicate the presence of data signals as well as the presence of operating power making system troubleshooting simple.

Specifications Important Features
Data Transmission Rate  DC to 10 Mb/s
(RS-232 DC to 1Mb/s)		    • DC to 10 Mb/s Data Rate
Protocols Supported RS-232, RS-422, TTL
RS-485(2 & 4 wire) TTL		  • Fully Adjustment Free
Operating Modes Simplex, Duplex, Drop-and Repeat, RTS or Data Derived T/R  • Stand-alone, DIN or Rack
   Mountable (same unit)
Rise/Fall times (typ)  100 nsec, RS-232, 1.0 usec  • Data Signal & Power
    Indicators
Propagation Delay 422  0.1 usec
Propagation Delay 232  1.5 usec +/- 12 nsec
Operating Wavelength 850, 1310 or 1550nm
Optical Loss Budget  0-15 dB (multimode),
 0-18 dB (single-mode)
Optical Connectors ST (multimode)
FCPC (single-mode)
Signal Connectors Removable Terminal Block
Power Requirements 11-24 VAC/DC @150 mA
Humidity <95% non-condensing
MTBF (per MIL HBK 217D) >120,000 hours
Operating Temperature -35 to +75 degrees C
Physical Size (mm)  5.0" x 3.0" x 1.0"
127mm x 76mm x 25.4mm

Note all specifications are subject to change without notice

Related Field test procedures;

DX-7001 Universal Data Transceiver RS-232 test 30 KB
DX-7001 Universal Data Transceiver RS-422 test

9 KB
DX-7001 Universal Data Transceiver RS-485 2-wire test

8 KB
DX-7001 Universal Data Transceiver RS-485 2-wire Turn Around Time

83 KB
