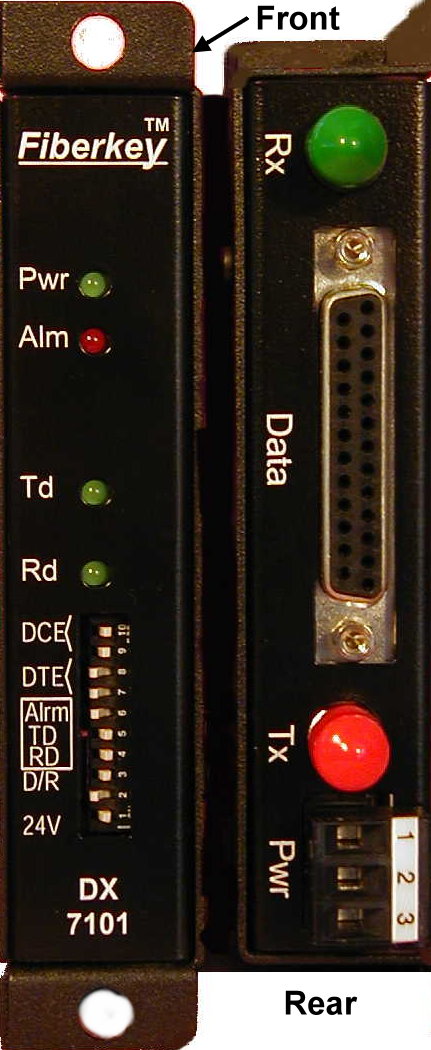

DX-7101     RS-232 Data Transmission System   Click for larger image of the DX-7101 Fiber Transeiver.

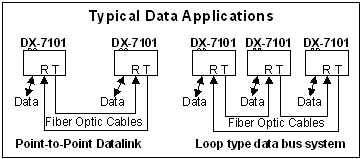

Point-to-Point or Drop-and-Repeat  Applications

Typical Data Tranmission Application


The LuxLink© DX-7101 is a data transceiver designed to transmit and receive RS-232 signals in a wide range of diverse applications. The unit is designed to operate in simplex, full duplex or drop-and-repeat modes and can easily be user configured for DTE or DCE operation. The DX-7001 will operate continuously at all data rates from DC to 200 Kb/sec.

Both multimode and single-mode versions are available and installation is totally adjustment free. In addition, integral indicators are provided to continuously indicate the presence of data signals as well as the presence of operating power making system troubleshooting simple.

Specifications Important Features
Data Transmission Rate  DC to 200 Kb/s    • DC to 200 Kb/s Data Rate
Operating Modes Simplex, Duplex, Drop-and-
Repeat		  • Fully Adjustment Free
Protocols Supported  RS-232  • DB-25F Signal Connector
Signal Connector  Industry Standard DB-25F  • Signal & Power Indicators
Operating Wavelength 850, 1310 or 1550nm  • Stand-alone, DIN or Rack
   Mountable (same unit)
Configuration  DTE or DCE
Optical Output Power (typ)  -14 dBm (multimode),
 -10 dBm (single-mode)
Optical Connectors ST (mulitmode)
FCPC (single-mode)
Optical Loss Budget  0-15 dB (multimode),
 0-18 dB (single-mode)
Humidity <95% non-condensing
MTBF ( per MIL HBK 217D) >120,000 hours
Power Requirements  11-24 VAC/DC @150mA
Operating Temperature -35 to +75 degrees C
Physical Size  5.0" x 3.0" x 1.0"
127mm x 76mm x 25.4mm


*Note all specifications are subject to change without notice
