GPSX-1001     GPS NMEA and
1 PPS Fiber Optic Transceiver

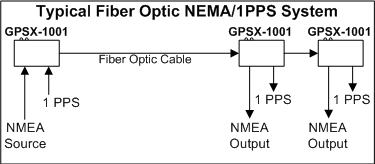

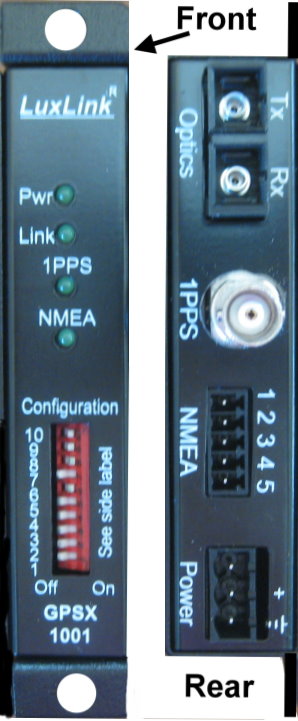

  Click for larger image of GPS NEMA-0183 & 1PPS Fiber unit


  GPS NMEA-0183 & 1PPS  Fiber Optic Application


The Luxlink® GPSX-1001 is a fiber optic transceiver that is designed to transmit, receive, repeat and distribute the NMEA-0183, NMEA-0183-HS and 1 PPS signals produced by a standard GPS receiver on a single optical fiber.

The unit may be used as a stand-alone optical transmitter, a stand-alone optical receiver or an optical repeater as selected by the user. Indicators are provided to monitor the presence of the various signals and multimode as well as single-mode fiber optic versions are available.


Specifications Important Features
NMEA 0183 Channel data rate  DC to 100 Kb/sec    · Low/High Speed NMEA
    Interface
NMEA 0183 Interface  EIA-422 or EIA-232
 (user selectable)
 · EIA-422 or 232 Selectable
NMEA 0183 Connector  Removable terminal block  · Stand-alone, DIN or Rack
     Mountable (same unit)
1 PPS Interface  TTL/50 ohms  · Multimode & Single-mode
    Fiber versions
1 PPS Rise/Fall Time  <10 nanoseconds
1 PPS Jitter  <±250 nanoseconds
1 PPS Signal connector  BNC
Indicator LEDs  Power, Link, 1 PPS, NMEA
Operating wavelength  850nm (multimode)
 1310nm (single-mode)

Optical Loss Budget  0-12 dB (multimode),
 0-15dB (single-mode)

Optical connector  ST (multimode)
 FCPC (single-mode)
Operating Temperature  -35 to +75 °C
Humidity  0 to 95% non condensing
MTBF (per MIL HBK 217D)  >120,000 hours
Power Requirements  11-24 VAC/DC @300 mA
Power connector  Removable terminal block
Physical Size  5.0" x 3.0" x 1.0"
127mm x 76mm x 25.4mm


*Note all specifications are subject to change without notice. Multimode fiber 62.5u
