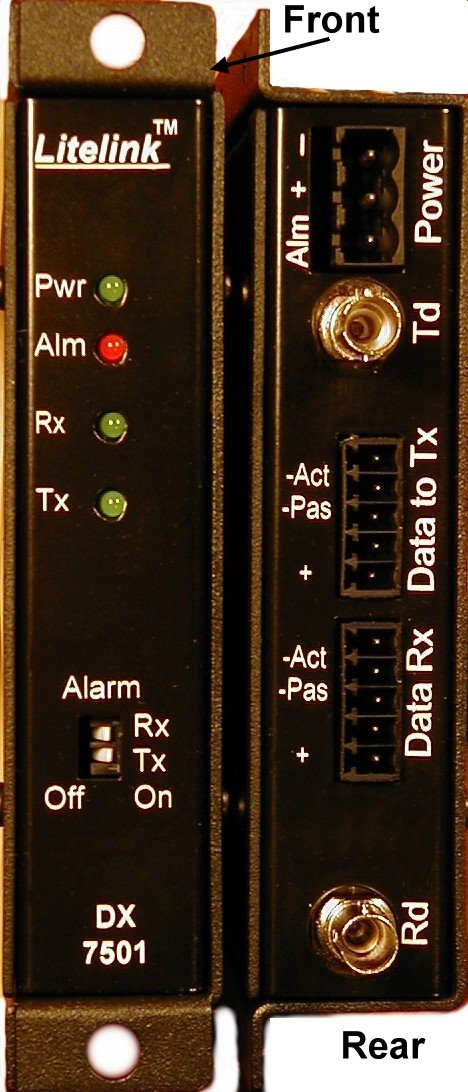

DX-7501         Digital Current Loop   Click for larger image of the DX-7501 Fiber Transeiver.
For 0-20, 30, or 60mA Digital Current Loop Applications

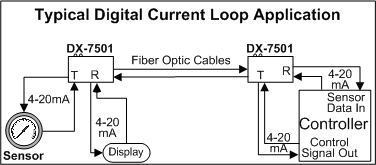

  Typical current loop data transmission application


The Luxlink© DX-7501 is a data transceiver designed to transmit and receive digital current loop signals in a wide range of diverse applications. The unit is designed to operate in simplex or full duplex modes. The DX-7501 can easily be user configured for active or passive 20 or 30 mA current loop operation and will operate continuously at all data rates from DC to 100 Kb/sec.


Both multi-mode and single-mode versions are available and installation is totally adjustment free. In addition, integral indicators are provided to continuously indicate the presence of data signals as well as the presence of operating power making system troubleshooting simple.

Specifications Important Features
Data Transmission Rate  DC to 115.2 Kb/s    · DC to 100 Kb/s
Protocols Supported  Current Loop 0-20mA or
 30mA		  • Fully Adjustments Free
Protocol Modes  Active and Passive  • Signal & Power Indicators
Operating Modes  Simplex, Duplex  • Stand-alone DIN or Rack
    Mountable (same unit)
Rise/Fall Times (typ)  1.0 microsecond
Operating Wavelength  850nm, 1310nm, 1550nm
Optical Connectors  ST (multimode)
 FCPC (single-mode)
Optical Loss Budget  0-15 dB (multimode),
 0-18 dB (single-mode)
Operating Temperature  -35 to +75 °C
Humidity  <95% non-condensing
MTBF (per MIL HBK 217D)  >120,000 hours
Signal Connectors  Removable Terminal Block
Power Requirements  10-12 VAC/DC @150mA
Physical Size  5.0" x 3.0" x 1.0"
127mm x 76mm x 25.4mm

Note all specifications are subject to change without notice
