IRGT/IRGR-1501
IRIG Time Code
For High Quality IRIG
Point-to-Point Signal Transmission

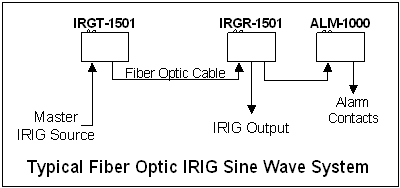

Luxlink© IRGT / R-1501 system consists of the IRGT-1501
transmitter and IRGR-1501 receiver. Both units are designed for the
transmission of high quality IRIG A through H signals for a multitude of
time code applications in accordance with conventional IRIG (and similar)
specifications. NASA-36 and IEEE 1344 are also supported. (the system is
designed for use with 50 ohm IRIG equipment).Integral
indicators are provided on both units to continuously indicate the presence of IRIG signals as well as the presence of operating power making system
troubleshooting simple.
Specifications Important Features
System Bandwidth
100Hz -500KHz (+0,-3dB)
• 12 dB Loss
Budget
Input / Output Impedance
50 ohms
• Signal & Power
Indicators
Protocols
IRIG A,B,D,E,G,H, NASA36
•
Stand-alone, DIN or
Rack
Input / Output Level
3 volt pp maximum
Output Drive Current
60 mA maximum
Signal/Noise Ratio*
60 dB minimum
Linearity
2% typical
Optical Loss Budget
0-12 dB (multimode)
System Delay
35ns for 850nm multimode
Optical Connectors
ST (multimode)
Operating Wavelength
850, 1310 or 1550nm
Signal Connector
BNC
Relative Humidity
<95% non-condensing
MTBF (MIL-HDBK-217)
>100,000 Hours
Operating Temperature
-35 to +75 °C
Power Requirements
11-24 VAC/DC @150mA
Physical Size (mm)
5.0" x 3.0" x 1.0"
Note all specifications are subject to change without notice *Measured with 1Km of 62.5u
multimode fiber. Copyright 2025
