The removable terminal blocks are supplied with all equipment. Depending
on the model these are the below types.

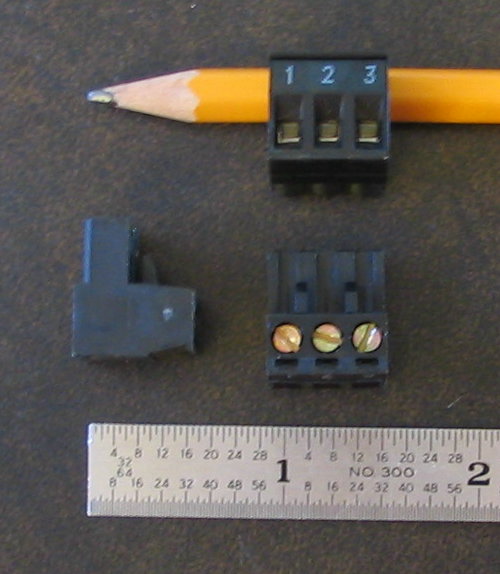

The 3 Position connector
The connector is a standard European removable terminal block, 3 position 5.00
millimeter. Accepts wire range 12 to 26 AWG. Electrical rating of
connector 300V, 15A. Wire strip length 5.0mm. Max torque 5 in-lbs.
Manufacturer
Part numbers
Molex
39520-0003, 39520-0103,39520-5003
Kobiconn
P035ESDVP
Buchanan
796640-3
On Shore
ED950-3
Weidmuller
1625610000
Phoenix Contact
1754465

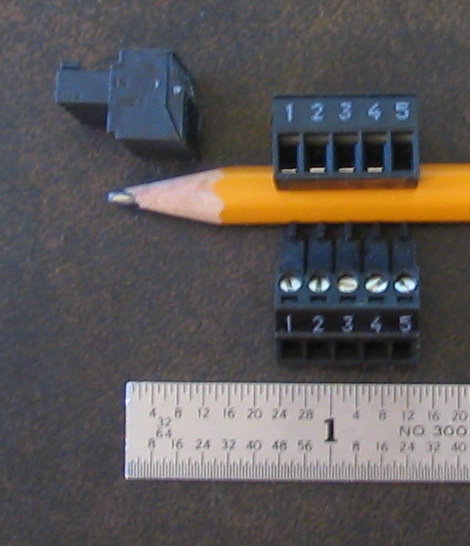

The 5 Position connector
The connector is a standard European removable terminal block, 5 position 3.50
millimeter. Accepts wire gauge 16 to 24 AWG. Electrical rating of
connector 300V, 8A. Wire strip length 5.0 mm. Max torque 3 in-lbs.
Manufacturer
Part numbers
Molex
39500-0105 or 39351-0005
On Shore
ED1550-5-BK, ED1550-5-BK / 12345 L-R
Phoenix Contact
MC 1.5/5-ST-3.5, MCVR 1.5/5-ST-3.5, MCVW 1.5/5-ST-3.5
The 16 Position connector
The connector is a standard European removable terminal block, 16 position 3.50
millimeter. Accepts wire gauge 16 to 24 AWG. Electrical rating of
connector 300V, 8A. Wire strip length 5.0 mm. Max torque 3 in-lbs.
