Power Supply   PS-1205 US

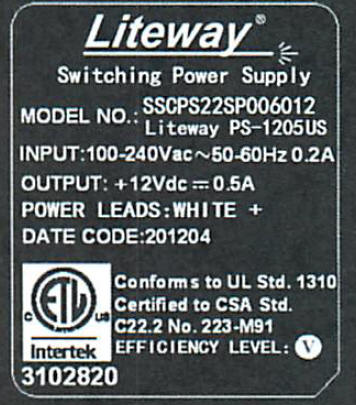

 PS-1205 Power Supply

Pdf Datasheet            Pdf Manual

The Liteway PS-1205 is a stand-alone wall type plug-in power supply that may be used to power one fiber optic transmission units.
Cost $15 US qty 1-10



AC Input US 100-240 50/60Hz 0.2A
AC Input Connector US Wall Plug
DC Output Current 500 milliamperes
DC Output Voltage 12 V +/- 5% at 500mA load
Cord Length 6 feet
Indicator Lights None
Storage Temperature -25 to +85 C
Operating Temperature 0  to  +40 C
Relative Humidity 5%-90%
Physical Size  3.07" (78.0) L x 1.91"(48.5) W x 1.33" (33.8)D
