Product Outlines

Standard products are packaged in three sizes.   Select the Outline you which to view below.
Depth x Height x Width

• Small      3" x 1.0"  x 5" Outline (e.g. most standard products)
• Small      4" x 1.0"  x 5" Outline
• Medium  3" x 2.2"  x 5" Outline
• Medium  4" x 2.2"  x 5" Outline
• Long       7" x 1.0"  x 5" Outline (e.g. 1Amp Power Supply)
• Large      7" x 2.2"  x 5" Outline (e.g. 6 Amp Power Supply)

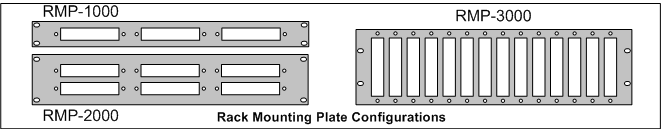

Rack mounting panels are available in three sizes

• RMP-1000,  1 U Panel (pdf 9 KB)
• RMP-2000,  2 U Panel (pdf 8 KB)
• RMP-3000,  3 U Panel (pdf 12 KB)
