LuxLink Optical Switches

Optical switches are utilized to disconnect, bypass and reroute fiber optic communications.  All of these optical switches are purely optical path, there is no optical to electrical to optical conversion.

All Optical switches are available in multi mode versions (-3 for ST connectors, -4 for SC connectors)  or single mode versions (-5 for SC connectors, -6 for LC/PC connectors -7 for FC/PC connectors)

All our switches are listed below.  Click to jump to class of switchMade in USA Logo
   A/B switches
   Bypass Switches
   Power Detection Switches
   Single Pole, Single Throw switches

 Model  Description
 OS-3122
Single Optical Bypass Switch / Relay Block diagram of optical bypass swtich
 --- Provides a bypass of node in a fiber ring, (e.g. failsafe).

 OS-3222
Dual Optical Bypass Switch / Relay
--- Provides a bypass of node in a dual fiber ring. Two OS-3122 in single housing

 OS-3111

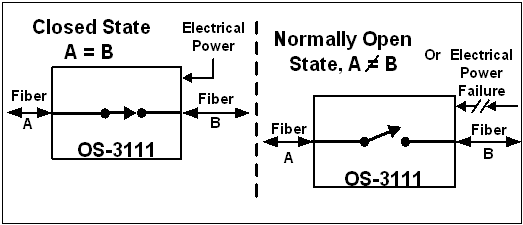

Single Pole Single Throw Optical Cutoff Switch (SPST, Normally Open) Block diagram of optical cutoff swtich
 OS-3211
Double Pole Single Throw Optical Cutoff Switch (DPST, Normally Open)
 OS-5111

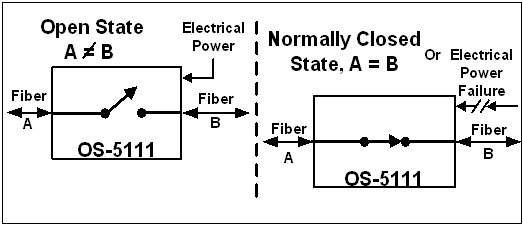

Single Pole Single Throw Optical Cutoff Switch (SPST, Normally Closed) Block diagram of optical swtich
 OS-5211

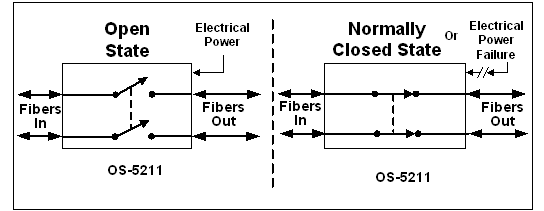

Double Pole Single Throw Optical Cutoff Switch (DPST, Normally Closed)
 OS-3121
Fiber Optic A/B Switch  (Single Pole Double Throw) Block diagram of optical A/B swtich
OS-3221
Fiber Optic Dual Path A/B Switch  (Double Pole Double Throw)
 Block diagram of Dual Optical A/B Swtich
OS-3131
Fiber Optic A/B/C Switch  (Single Pole Triple Throw)
OS-3141

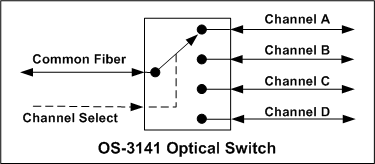

Fiber Optic A/B/C/D Switch  (Single Pole Triple Throw)
 OS-4111
 Optical Path Tamper Sense Switch (SPST)
 --- Detects tampering of optical path and blocks communication Block diagram of optical path tamper detection switch
 OS-4121
 Redundant Path Optical Switch

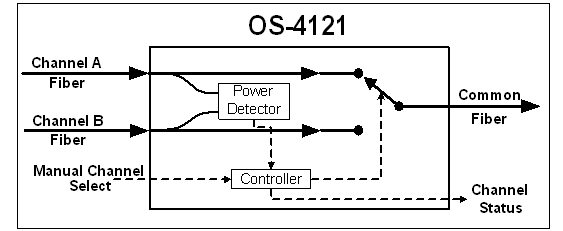

 --- Detects loss of optical signal and switches to backup path. Automatic Optic Switch Block Diagram
 OS-4221
 Redundant Path Optical Switch    ** New Product **

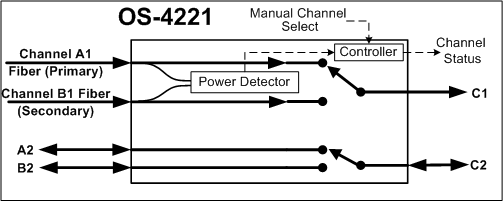

 --- Detects loss of optical signal and switches to backup path. Contains two 1x2 switches.



OS-7121
Redundant Bidirectional Path Optical Switch
--- Detects loss of optical signal and switches to backup path. Block diagram of optical protection swtich
 Accessories
 ALM-1000  Alarm module
 DIN-1000  DIN Rail Mounting Adapter
 RMP-1000,
   2000, 3000
 Rack mounting panel
 PS-1205 US  Power Supply (US Wall Plug 0.5 Amp)
 PS-1208 EU  Power Supply (European Union Wall Plug 0. 8 Amp)
 PS-1210,
 PS-1260
 Power Supplies (1 & 6 Amp)

Remember, If you don't find the product you need, call as not all the available products are listed on the web.
